产品规格 |
单位 |

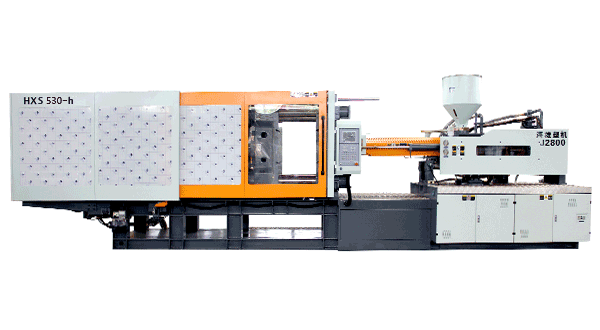

HXS/h530 |
|||||
注射装置Injection Unit |
A组A |
A组B |
A组C |
B组A |
B组B |
B组C |
|
螺杆直径Screw diameter |
Mm |
75 |
80 |
85 |
60 |
65 |
70 |
螺杆长径比Screw L/D ratio |
L/D |
21.3 |
20 |
18.8 |
22.7 |
21 |
19.5 |
理论注射容积Injection capacity in theory |
cm3 |
1634 |
1860 |
2099 |
905 |
1062 |
1232 |
注射重量Injection weight(ps) |
g |
1495 |
1701 |
1921 |
841 |
988 |
1145 |
oz |
52.7 |
60.0 |
67.7 |
29.6 |
34.8 |
40.4 |
|
注射压力Injection pressure |
MPa |
191 |
168 |
148 |
190 |
162 |
140 |
注射速率Injection velocity |
mm/s |
382 |
435 |
491 |
258 |
300 |
348 |
塑化能力 Plasticizing capacity |
g/s |
52 |
57 |
62 |
40 |
48 |
57 |
螺杆转速 Screw speed |
rpm |
150 |
180 |
||||
合模装置Clamping Unit |
|
||||||
合模力Clamping force |
kN |
5300 |
|||||
移动模板行程Moving mould-plate stroke |
mm |
830 |
|||||
大模厚 Max.Mould height |
Mm |
830 |
|||||
小模厚Min.Mould height |
mm |
330 |
|||||
拉杆有效间距 Space between tie-bars |
mm |
860*810 |
|||||
液压顶出力Hydraulic ejector force |
kN |
181 |
|||||
液压顶出行程 Hydraulic ejector stroke |
mm |
230 |
|||||
顶出点数Ejector number |
n |
17 |
|||||
其他Other |
|
||||||
油泵压力Pump pressure |
MPa |
16 |
|||||
普通电机/驱动功率 Motor/Driving power |
kW |
55/30*2 |
|||||
加热功率 Heating capacity |
kW |
41.9 |
|||||
外形尺寸 Machine dimension |
m |
8.81*2.05*2.5 |
|||||
机器重量 Machine weight |
t |
22 |
|||||
油箱容积 Oil tank capacity |
L |
1156 |
